NEW PRODUCT!
Spectra DG613G Green Beam Dialgrade Pipe Laser,
Compact and Powerful,
Grade Range -12% to +40%,
Self-leveling over the entire grade range,
Fully cross-axis compensation,
RC803 remote control operates via radio and infrared,
Spectra DG613G Pipe Laser Overview,
Designed to fit around tighter curves, the Spectra Precision,   DG613G offers the most productive pipe laying experience on the market. They are extremely rugged and thrive in demanding underground conditions. Featuring the latest technology developed by Spectra,
Precision, the beams move quickly and precisely for alignment and leveling. The Spectra DG613G helps you improve efficiency and deliver unprecedented performance and reliability. Working in trenches just got easier with the new range of pipe lasers from Spectra Precision.

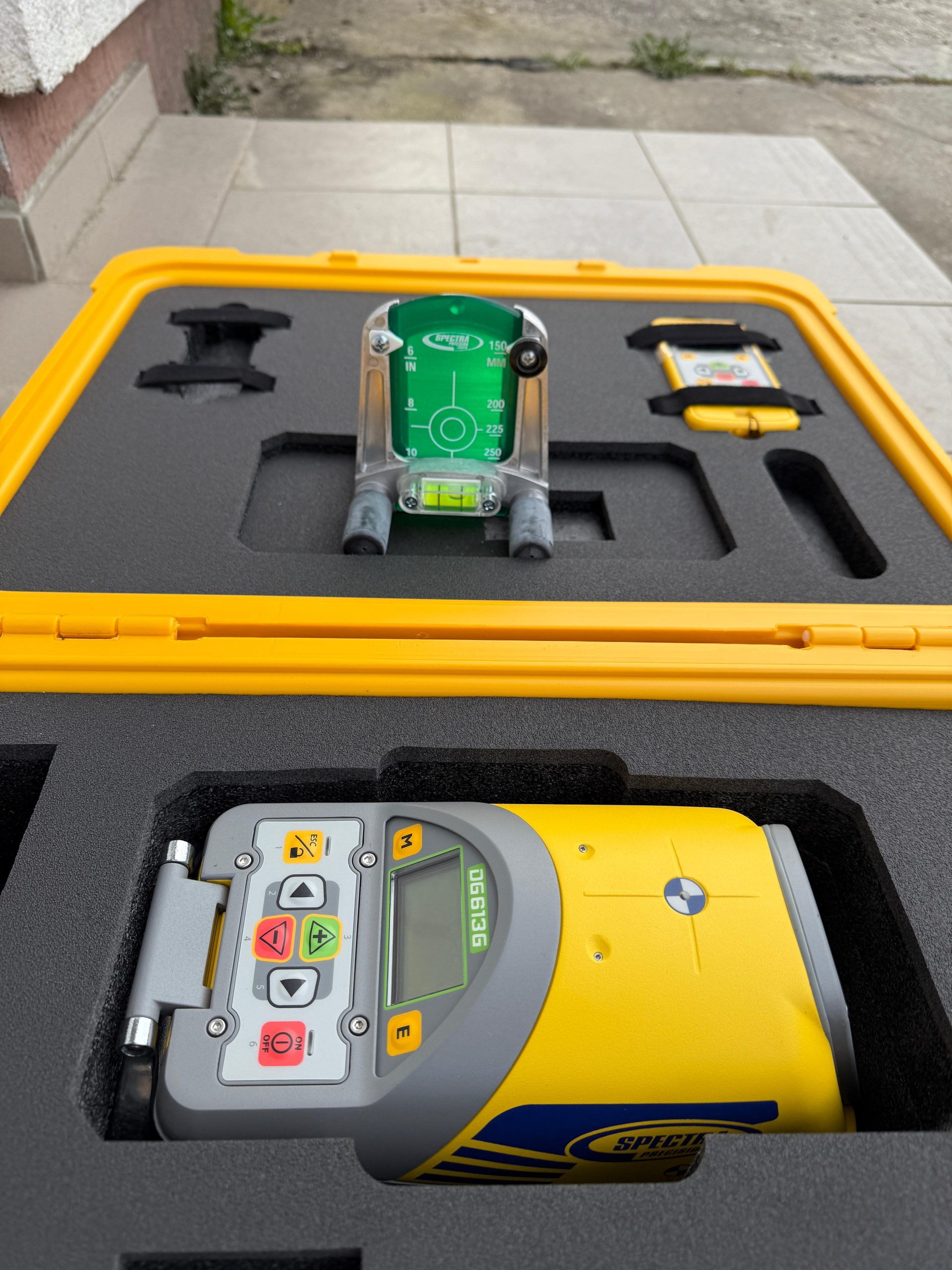

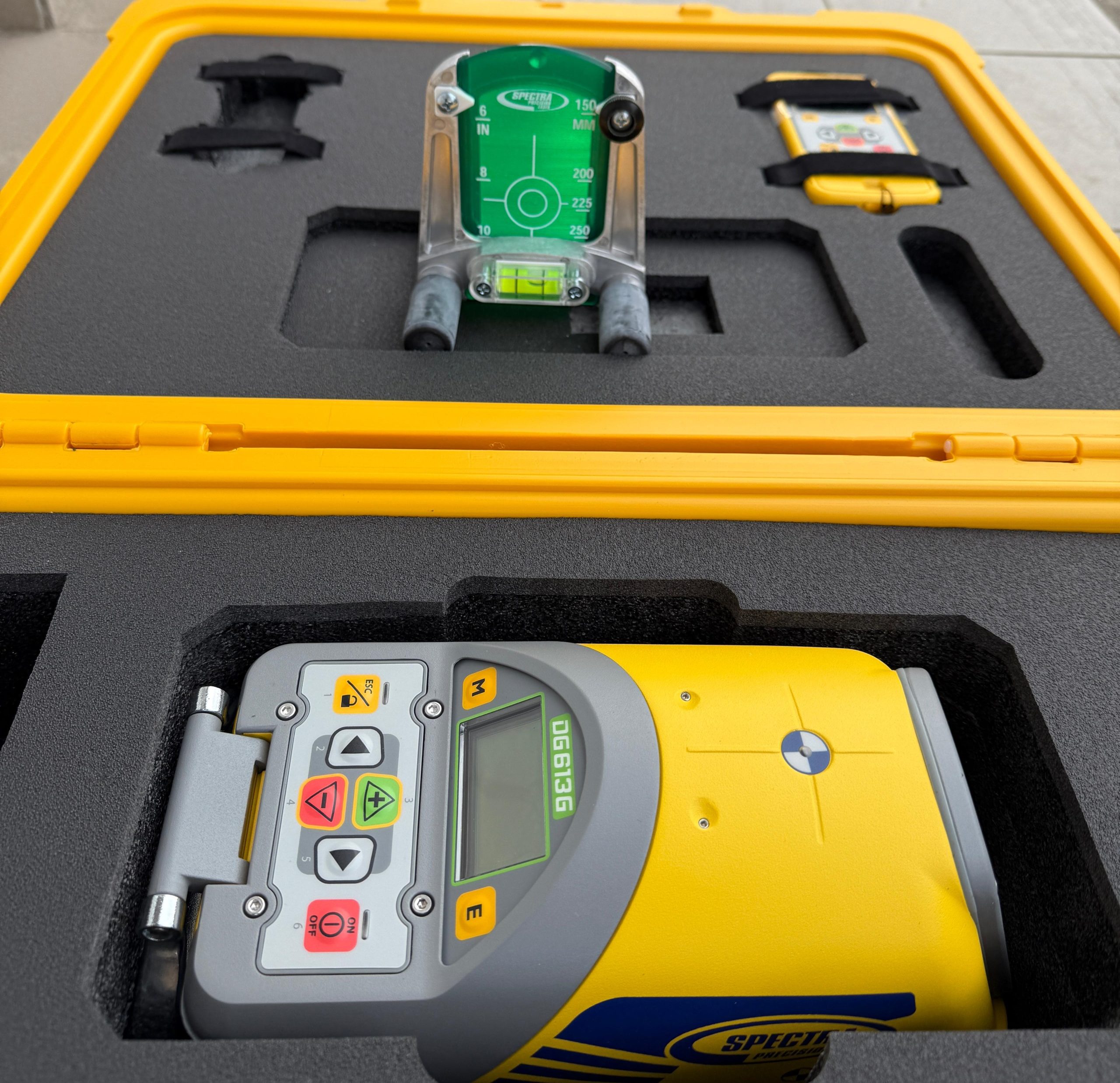

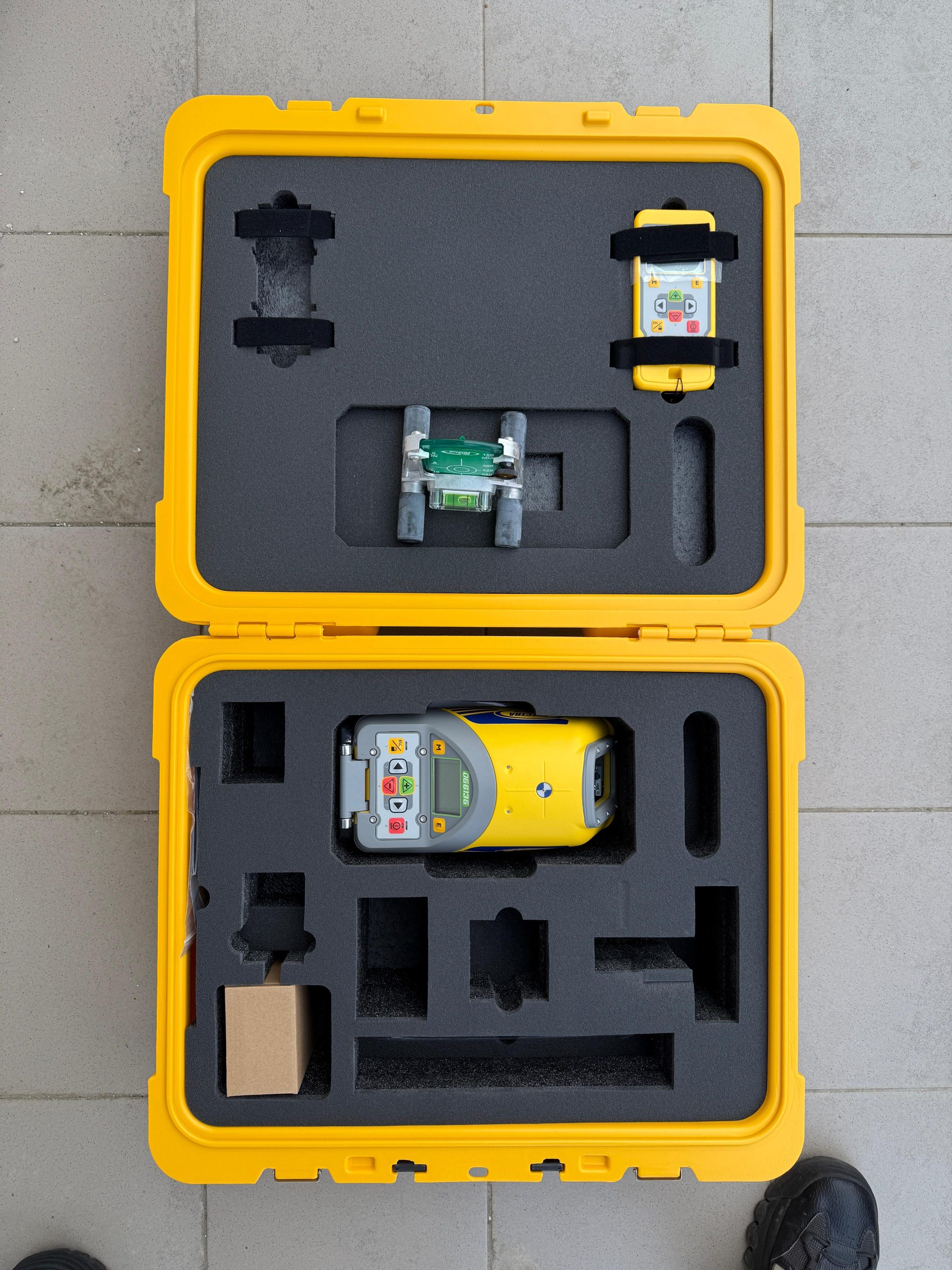

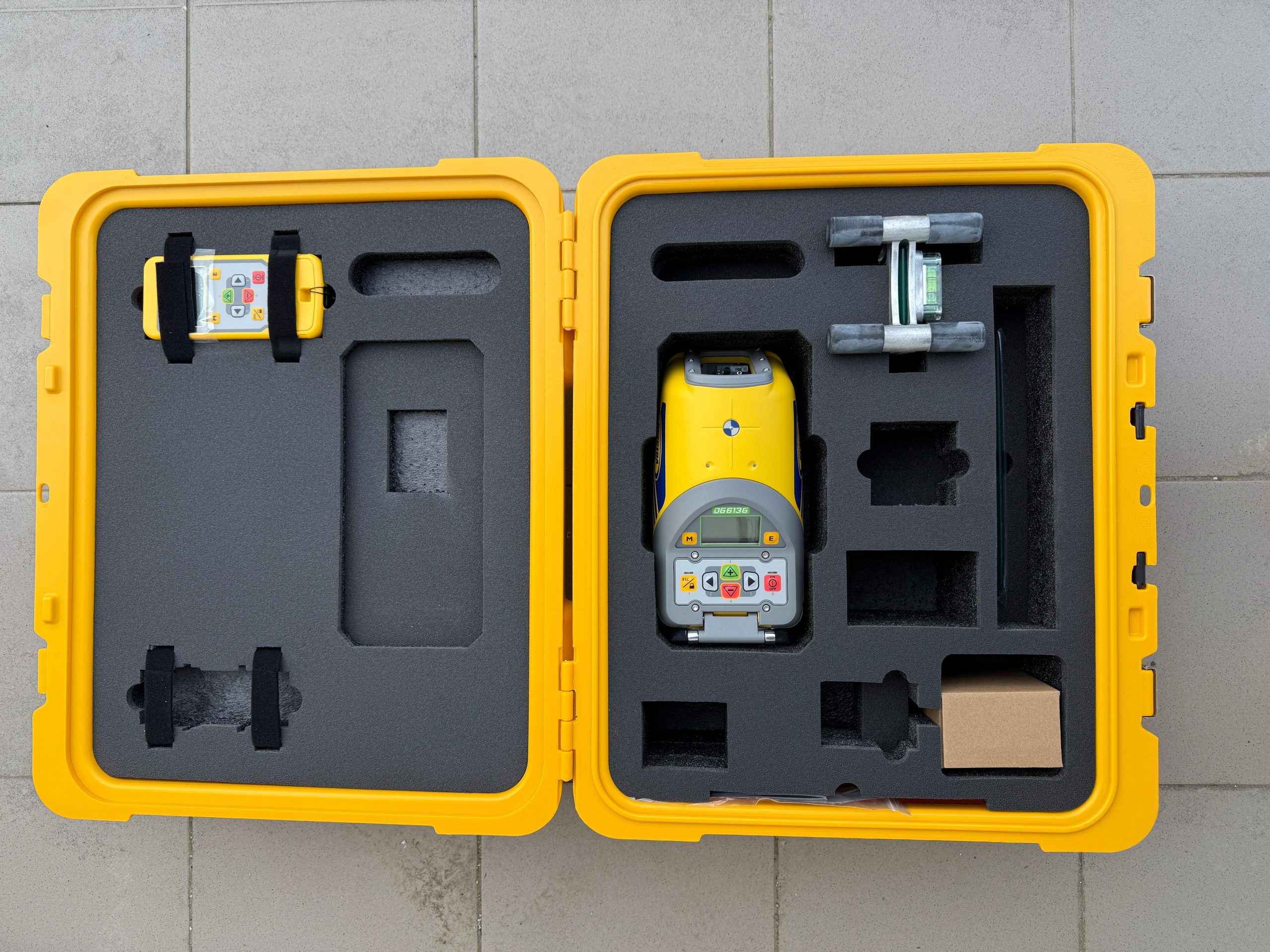

Spectra Precision DG613G Pipe Laser Includes,

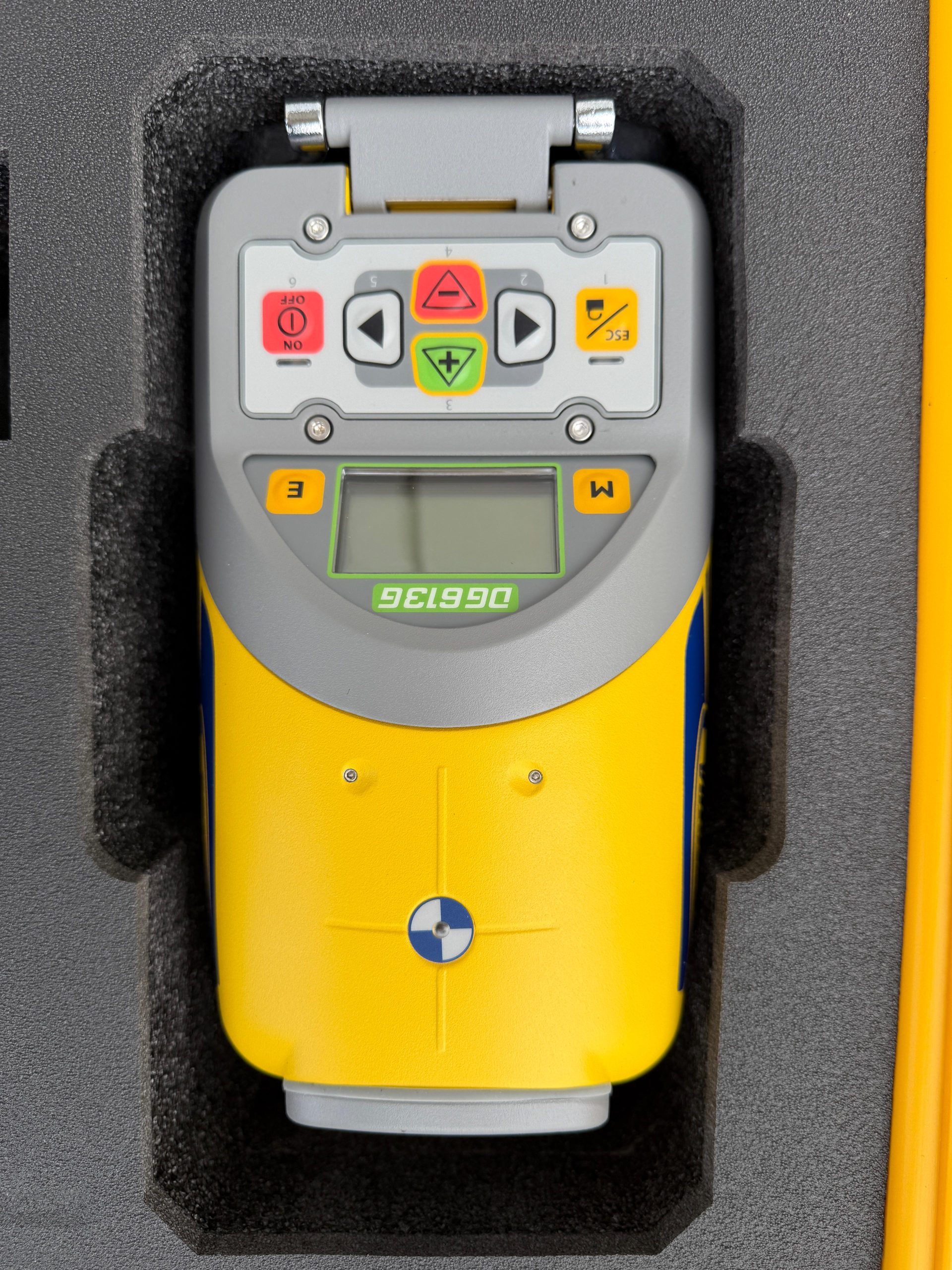

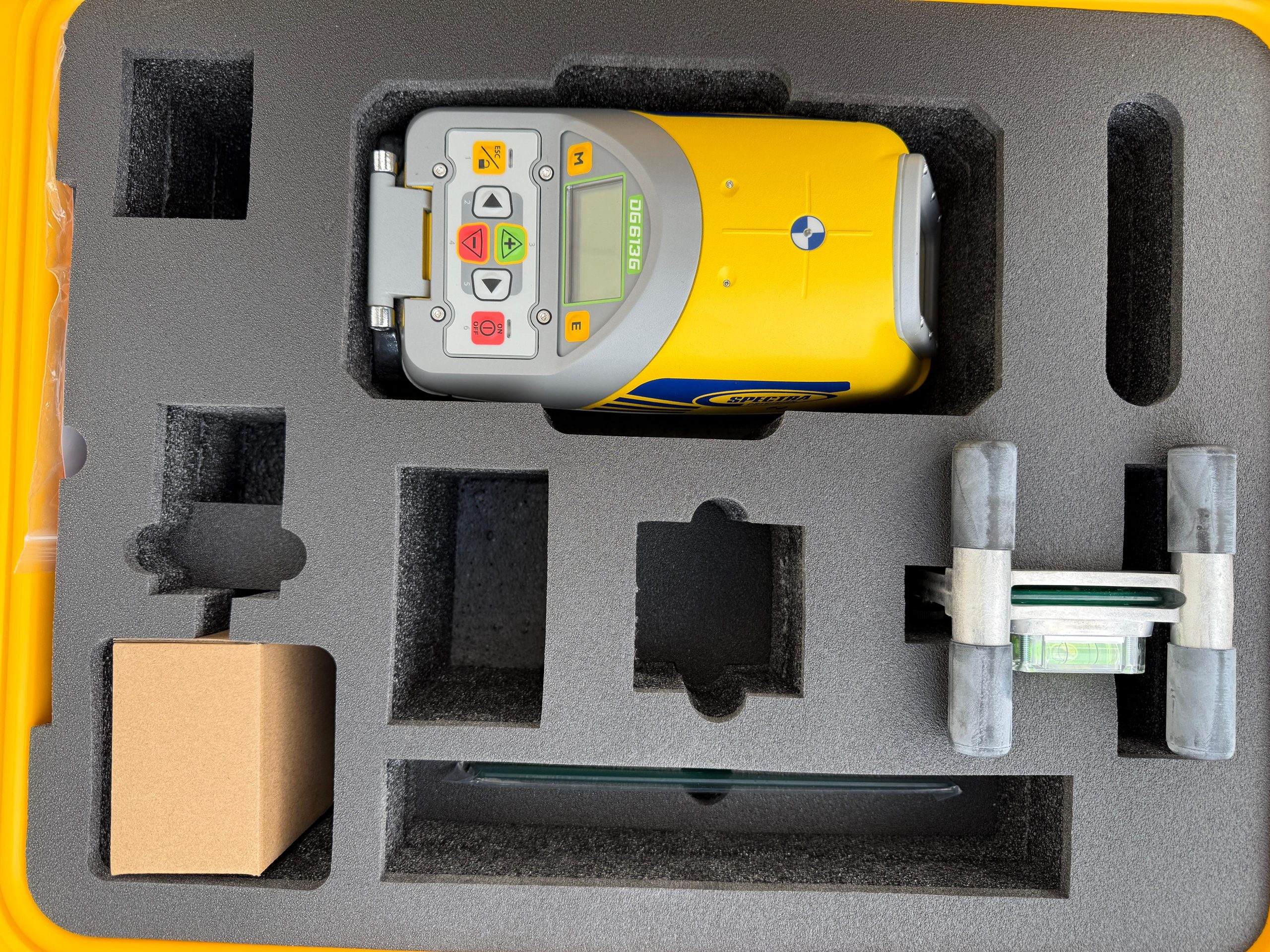

Green Beam Pipe Laser DG613,
Pipe Centering Plate for Trivet (8") 1248,

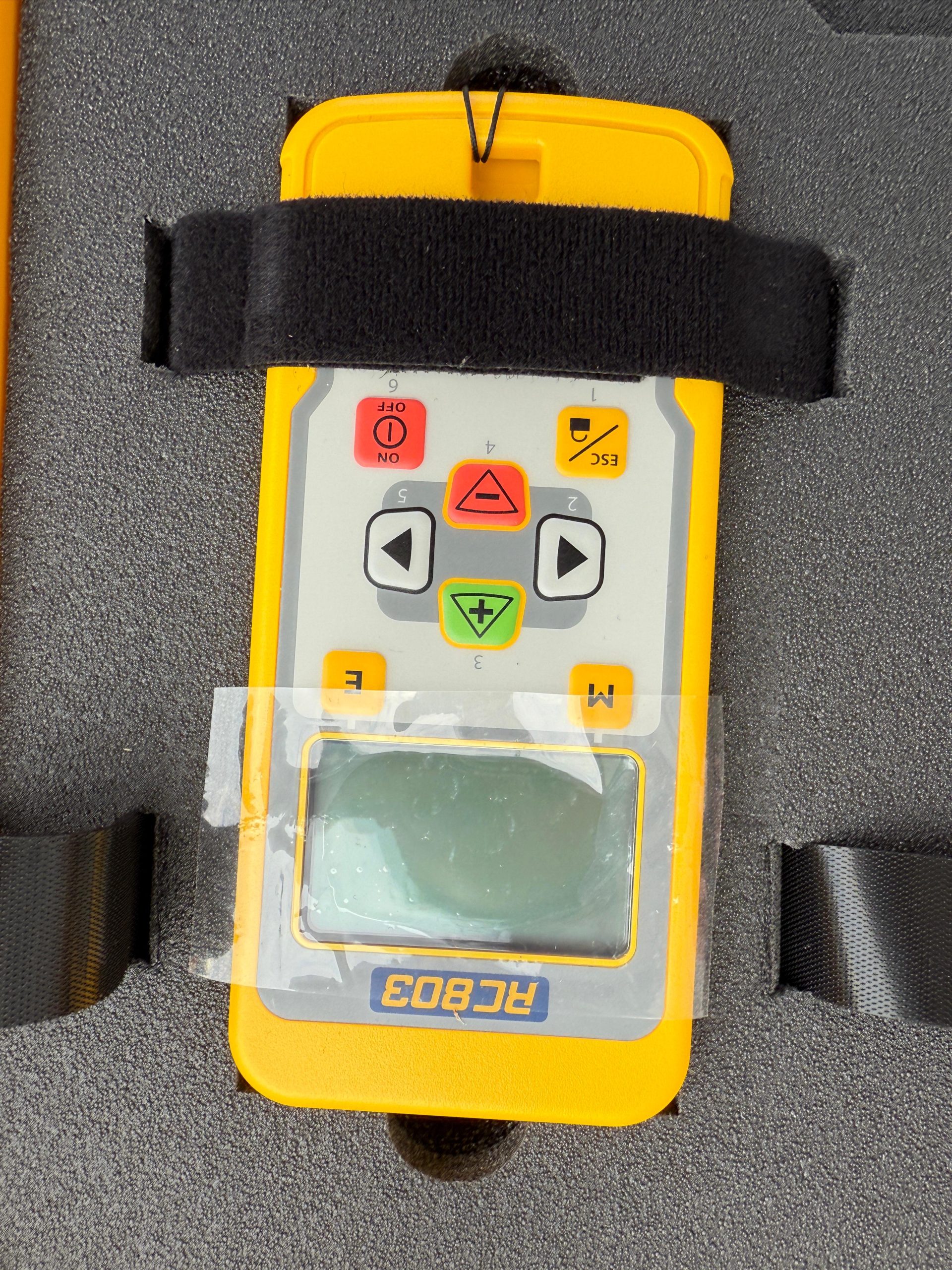

Infrared Radio Remote RC803 with Hand Loop,
Target 956 with Two Target Plates,
Rechargeable NiMH Battery Q104667 (Blue),
Smart Charger,
Carrying Pouch,
Operating Manual,
5 Year Warranty,
Spectra Precision DG613G FEATURES & BENEFITS,
New reduced length allows for easy installation even in tight inversions,
Self-leveling range from -12% to +40% over the full degree range
Cross-axis compensation provides faster and more accurate setup because the laser,
does not need to be level in the pipe - place it in the pipe it levels, you do the work.
Visible beam that works up to 150 m (500 ft),
The RC803 remote control operates via radio 130 m (430 ft) or infrared 150 m (500 ft) for both over-the-top and pipe/trench configurations.
The large, bright, graphical user interface makes the display easier to see and use when in or out of the pipe. The same graphical user interface can be seen on the
remote control - what you see on the laser, you see on the remote control.
The Spectra Precision DG613 has advanced features that make setup and use easier and more accurate:
Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set the direction. The beam will go up to 100%, allowing for easy alignment even in short trenches
Line Scan – provides quick alignment to the center of the target for next day setup  ,
Line Alert – notifies the user if the setup is disturbed,   eliminating costly rework from errors,
Spectra Precision DG613G APPLICATIONS,
Gravity Flow Plumbing Installation,
Storage Pipes,
Pipe Jack,
Can be used in a pipe or in “Over the Top” configurations.
SPECTRA PRECISION DG613G KEY FEATURES,
- SELF-LEVELING,
The Spectra DG613 has the industry’s largest range of self-leveling, providing quick and easy setups, regardless of grade. Unlike traditional pipe lasers, it eliminates the need for rough leveling and minimizes crew training. Simply install the laser into the pipe, manhole or open cut without having to rotate or level the unit.

- LINE ALERT:
This unique feature is ideal for working in high vibration or wet conditions where pipe lasers can be disrupted. The beam flashes to let you know that the setup line has been disrupted, eliminating the need to re-level. Combined with the self-leveling warning, you’ll always get the job done correctly, on time and on budget!

- LINE SET:
The line set/check capability of both pipe lasers allows you to raise the beam up to 100% out of the trench for quick line setup or verification.

Raising the laser beam from the trench to an above-ground stake saves you time — instead of having to move your excavator off-line while installing the pipe laser, you can simply get on with your job. Plus, the Line Set-Check feature is ideal for rechecking the line for pipe elevation after each press. - TARGET Our patented target lens collects the beam and transfers the dot to the viewing angle of the pipe layer, making the laser beam very easy to see (included in the standard package). - Shorter length,
- Grade range from -12% to +40%,
Self-leveling over the entire degree range and full cross-axis compensation,
Ultra-fast beam movement,
- Operating range up to 500 feet with radio/IR remote control
- LARGE and intuitive graphic display on laser and remote control,
- IP68 protection (dust and water resistant),
- Flexible power options (NiMH / Alkaline) Includes rechargeable batteries, but can use
alkaline batteries as a backup.,
- Advanced features that squeeze out work time: LINE SET/CHEC,
